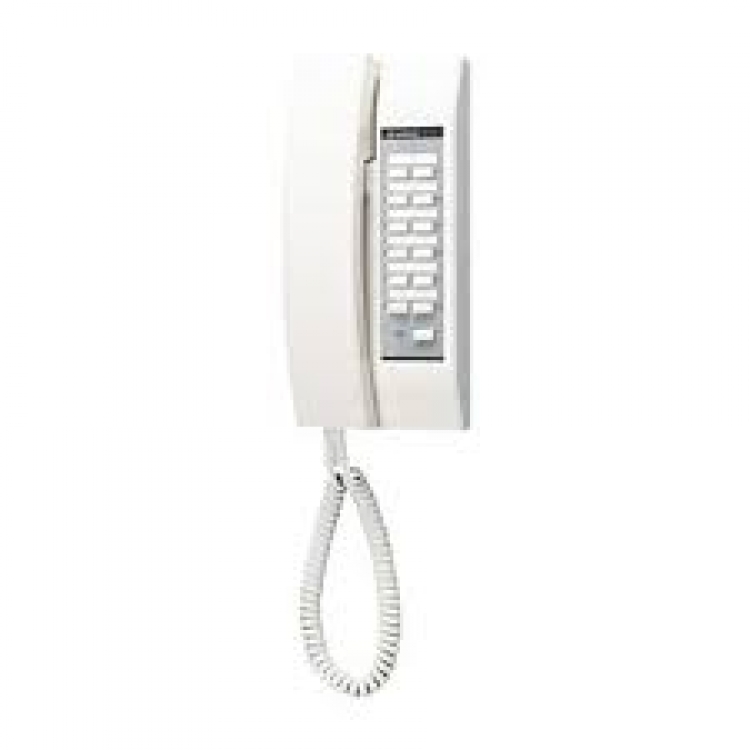

AiPhone ID-12H/B 聽筒式 辦公室 大廈管理處 屋苑對講機 室內音訊對講機 12位按鈕主機 5芯

居屋大廈對講機,聽筒式大廈對講機(子機)

遙距開啟樓下街閘按鈕

配合:ID-12H/B 12位主機

Key Features
Single entry 0 to 10-call panel
Add-on 8 or 16 call panel(s)

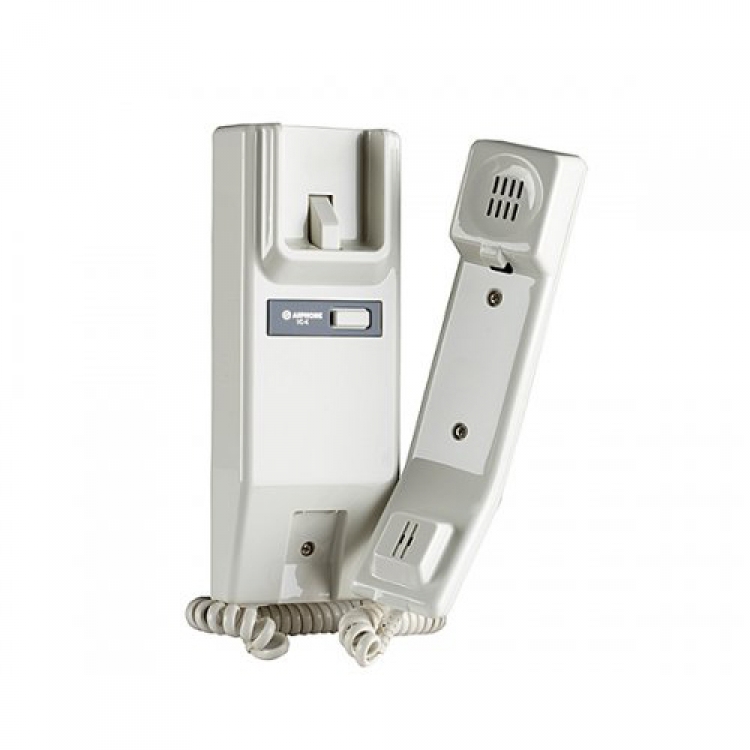

VC-K handset, one or two per residence
Directory back illumination
Single or larger panels up to 58 Button
Techical Specification
Power Source 12V DC, 80mA (intercom) 100mA (lamp)
 Power Supply PS-1215DIN
 Communication Electronic buzzer ring VC-K station(s). (Freq.. 600Hz approx.) Take (either) handset to reply, Single open channel.
 Wiring 4 Common + no.(residences), in loop.
VC-M ¬ VC-K: 35Ω loop.
VC-M ¬ Power Supply: 4Ω looped.
 Distance VC-M to VC-K 330m(0.65mmØ) 90m(1.0mmØ)

操作說明提示:
配一樣型號更換比較簡單換。
配不一樣型號牌子就需要逐條線跟，不同牌子接位不同。
小心不用駁錯可能搞亂大廈開門系統。

Key Features
Single entry 0 to 10-call panel
Add-on 8 or 16 call panel(s)
VC-K handset, one or two per residence
Directory back illumination
Single or larger panels up to 58 Button
Techical Specification
Power Source 12V DC, 80mA (intercom) 100mA (lamp)
 Power Supply PS-1215DIN
 Communication Electronic buzzer ring VC-K station(s). (Freq.. 600Hz approx.) Take (either) handset to reply, Single open channel.
 Wiring 4 Common + no.(residences), in loop.
VC-M ¬ VC-K: 35Ω loop.
VC-M ¬ Power Supply: 4Ω looped.
 Distance VC-M to VC-K 330m(0.65mmØ) 90m(1.0mmØ)

英文小冊子下載

http://www.aiphonepty.com.au/wp-content/uploads/2015/04/Modification-VC-K-with-VAM.pdf

http://www.aiphone.com.au/product/vc-m/

**以上資料轉載予AiPhone 的公開資料
