日本ICOM 全頻航空波段接收機 機長,航空發燒友,業餘無線電愛好者 航空多功能接收 輸入頻率 免牌照合法使用機 2A電 液晶顯示 0.100MHz〜1309.995MHz 各種掃描100ch/秒VFO模式

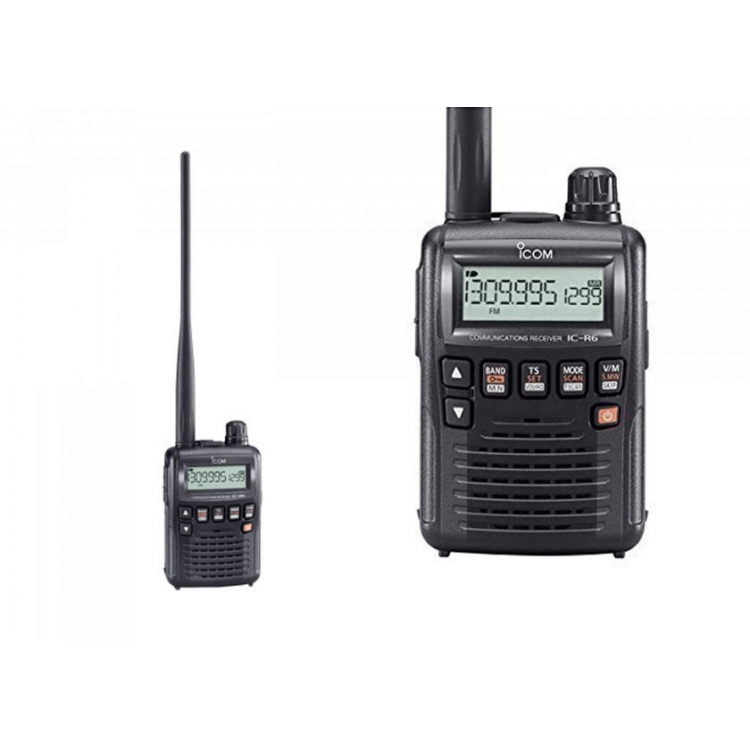

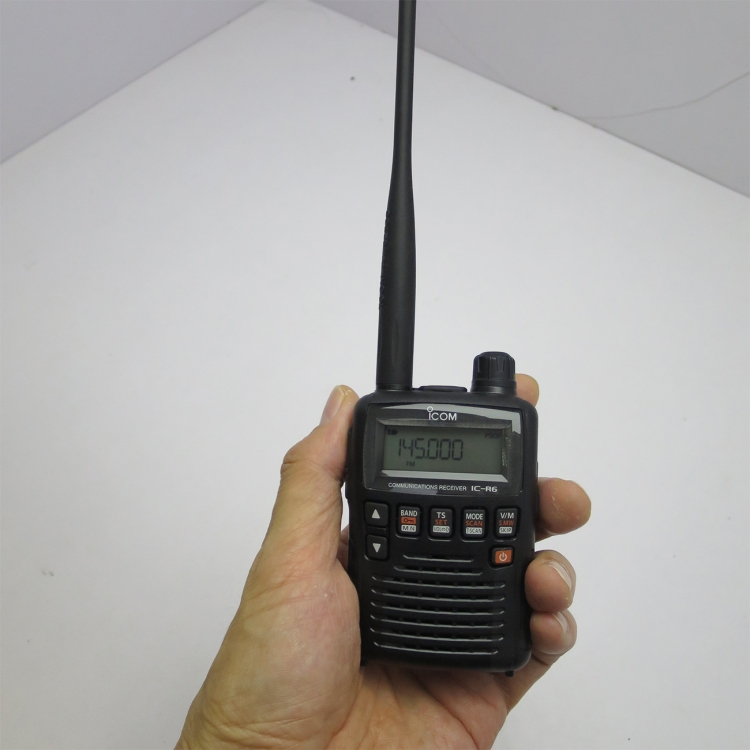

The 100 Ch/Sec Wideband Signal “Search Machine”

***********************************
●本公司設有租借機給客戶場地測試對講機服務
●款式太多歡迎來電查詢,講解操作程序,全天候技術方案支援。

100kHz–1309.995MHz* Wideband Coverage

While the IC-R6 receives an ultra wideband frequency range, the radio provides superior sensitivity and receiver characteristics that is insusceptible to interference. Amateur stations, AM, FM, short wave broadcasts, TV audio* and a variety of utility communications can be caught and listened to.

* Frequency range depends on version. Analog TV audio only. Cannot decode digital TV audio.

100 Channels per Second High Speed Scan

The IC-R6 has 100 channels per second high speed scan capability*. This superior scanning power allows the utmost efficiency when searching over 1300MHz of spectrum!

* VFO mode scanning.

15 hours of Continuous Receive Capability*

The IC-R6 is energy-efficient, designed to provide many hours of listening enjoyment on a single charge. With the supplied rechargeable Ni-MH cells (1400mAh ×2), the IC-R6 provides up to 15 hours of continuous receive capability*.

* At 50mW output using external speaker.

1300 Memory Channels with 22 Memory Banks

With 1300 alphanumeric memory channels, 50 scan edges and 200 auto write memories, the IC-R6 gives you flexible scanning. Use the bank link scan feature to choose from and connect any of the 22 memory banks.

VSC (Voice Squelch Control)

The VSC opens the squelch only when a modulated signal is detected and ignores unmodulated beat noise. It is a handy feature for those listeners who are scanning for talk, news and music, but not data bursts or beacons.

Multiple Power Choices

The IC-R6 can be powered by rechargeable Ni-MH cells, or with alkaline batteries. Run the IC-R6 using the AC adapter, or opt for a cigarette lighter cable, CP-18A/E. When used the optional drop-in charger stand BC-194 with the AC adapter or cigarette lighter cable, you can easily start charging the Ni-MH cells, while eliminating the need to connect the power source to the DC power jack of the receiver.

Other Features

• Built-in audio low pass filter
• ±1.0ppm high frequency stability (at 25°C)
• Earphone cord antenna for AM aviation as well as FM broadcast
• Ferrite bar antenna for AM broadcast
• 150mW loud audio with internal speaker
• DTCS and CTCSS tone squelch and reverse tone squelch
• Priority watch function with priority beep function
• Optional CT-17, CI-V level converter for remote control
• PC programmable with optional CS-R6
• Receiver-to-receiver cloning (optional OPC-474 required)
• Auto power OFF (0.5–2 hours and end of busy signal)
• Compact, drip-resistant construction
• Duplex operation monitoring
• Automatic LCD backlight
• Dial speed acceleration
• Built-in RF attenuator
• Auto memory write scan stores the detected frequency, mode and tone into a specified memory
• Reversible up/down buttons and dial knob for volume, frequency, memory channel, scan direction and set mode settings
• Optional new tube earphone, SP-27
• Weather channel receive with weather alert*

●1組 (電腦寫頻式)
頻率範圍●800MHz 2G, 2.4G 3G, 4G 5G戶外用,長遠
特有規格
5.5cm寬 19.5cm高 3cm深(約)
推出日期 2023-10

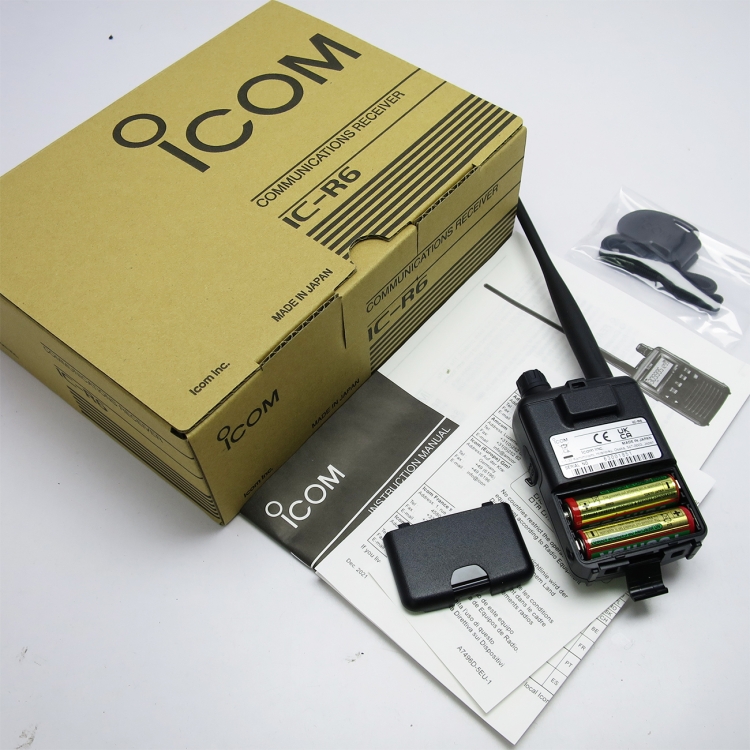

基本配件
●對講機(1)-12個月保養
●對講機夾(1)-6個月保養
●對講機(1) ●對講機夾(1)
●電池Li-ion4.2V 7800mAH(1) ●充電座(1)火牛100-240v 5VDc (1) ●中/英說明書(1)  ●麥克風插孔蓋(1)
●螺絲組(1) ●天線(1)

英文小冊子下載

General

Frequency coverage (Differs according to version)	0.100–1309.995MHz*
Mode	AM, FM, WFM
Frequency stability	±1.0ppm (at 25°C)
Current drain	Rated audio output: 130mA typ. (Ext. SP, backlight off)
Battery pack or cells	2×R6 (AA) size Ni-MH or alkaline cells
External power supply requirement	4.5V DC rated (4.5 - 6.3V with BC- 196SA/SD, CP-18A/E)
Antenna impedance	50Ω (SMA)
Number of memory channels	1550 (1300 regular, 200 auto memory write and 50 scan edges)
Dimensions (W×H×D; Projections are not included)	58×86×29.8 mm; 2.28×3.39×1.17 in
Weight (approx.)	200g; 7.1oz

Sensitivity (typical, except spurious points)	FM (at 12dB SINAD):	1.625MHz– 4.995MHz 0.32μV typ. 5.000MHz– 29.995MHz 0.25μV typ. 30.000MHz– 117.995MHz 0.18μV typ. 118.000MHz– 246.995MHz 0.18μV typ. 247.000MHz– 469.995MHz 0.18μV typ. 470.000MHz– 832.995MHz 0.32μV typ. 833.000MHz–1029.995MHz 0.28μV typ. 1030.000MHz–1309.995MHz 0.35μV typ.
	WFM (at 12dB SINAD)	76.000MHz– 108.000MHz 1.1μV typ. 175.000MHz– 221.995MHz 1.1μV typ. 470.000MHz– 770.000MHz 1.8μV typ.
	AM (at 10dB S/N):	0.495MHz– 4.995MHz 1.3μV typ. 5.000MHz– 29.995MHz 0.89μV typ. 118.000MHz– 136.000MHz 0.63μV typ. 222.000MHz– 246.995MHz 0.63μV typ. 247.000MHz– 329.995MHz 0.79μV typ.
Selectivity	AM, FM:	More than 12kHz/–9dB, Less than 30kHz/–60dB
	WFM	More than 150kHz/–6dB
AF power (at 10% distortion)		Internal speaker (16Ω load) More than 150mW External speaker (8Ω load) 80mW typ.
External speaker connector		3-conductor 3.5 (d) mm (1⁄8″)/8Ω

* Cellular bands are blocked in the USA version.

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard	MIL-810 G
	Method	Procedure
Low Pressure	500.4	I,II
High Temperature	501.4	I,II
Low Temperature	502.4	I,II
Temperature Shock	503.4	I
Solar Radiation	505.4	I
Humidity	507.4	-
Vibration	514.5	I
Shock	516.5	I,IV

Also meets equivalent MIL-STD-810-C, -D -E and -F.
